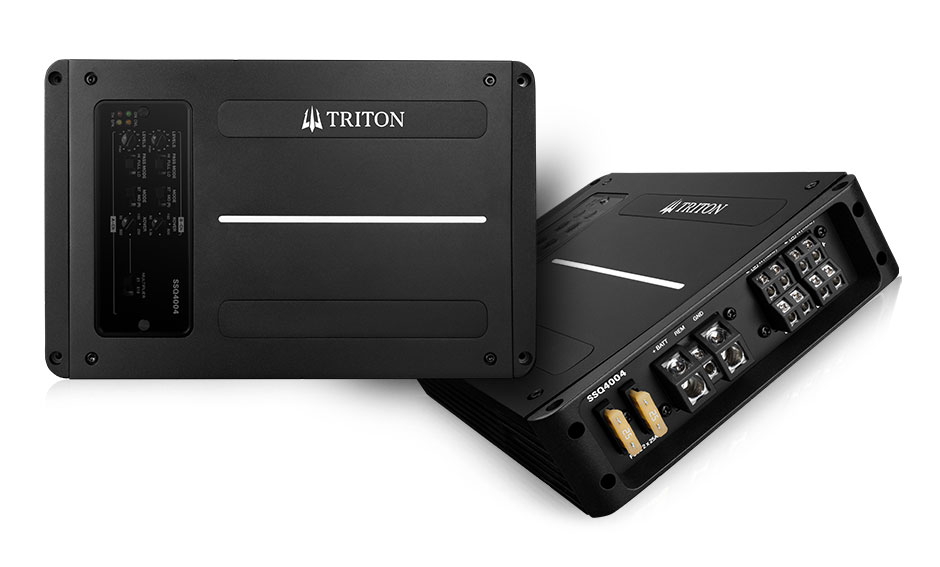

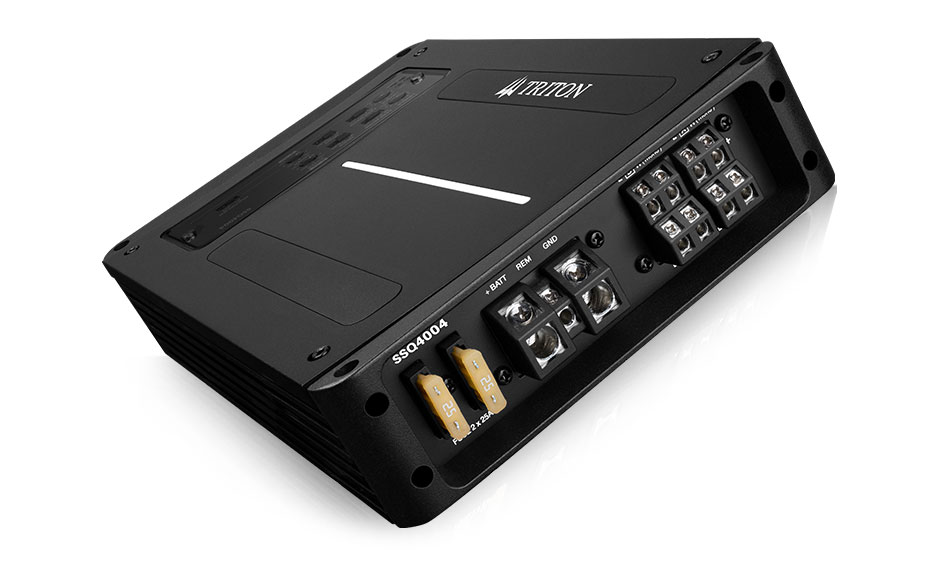

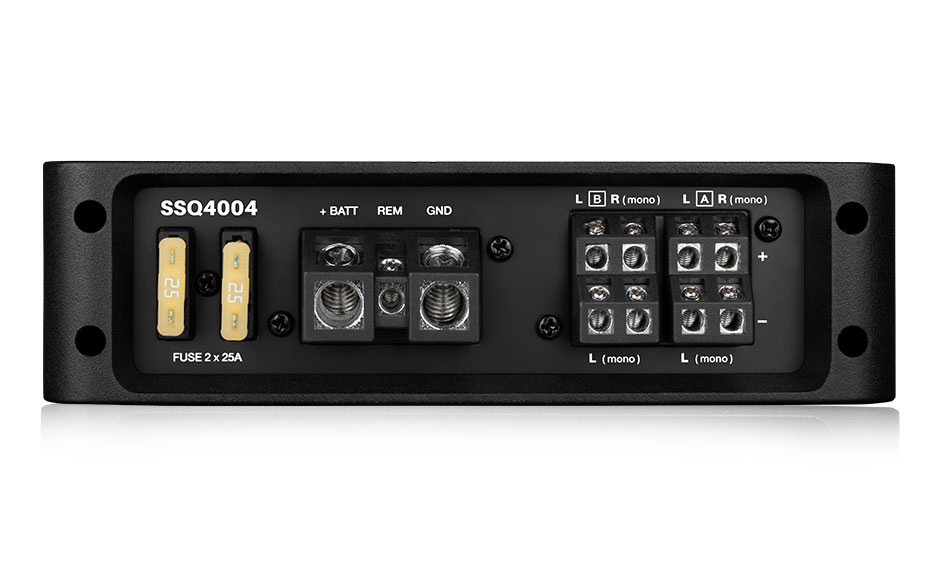

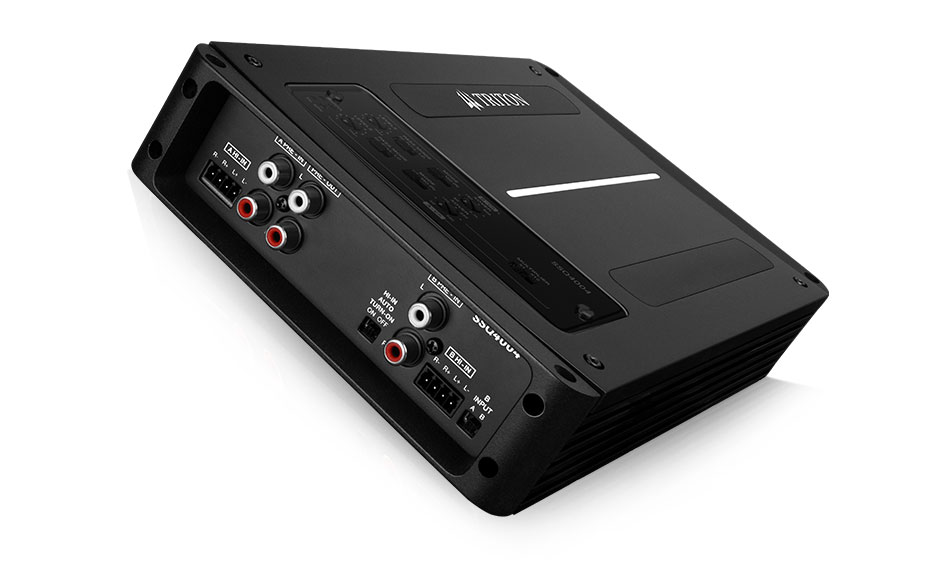

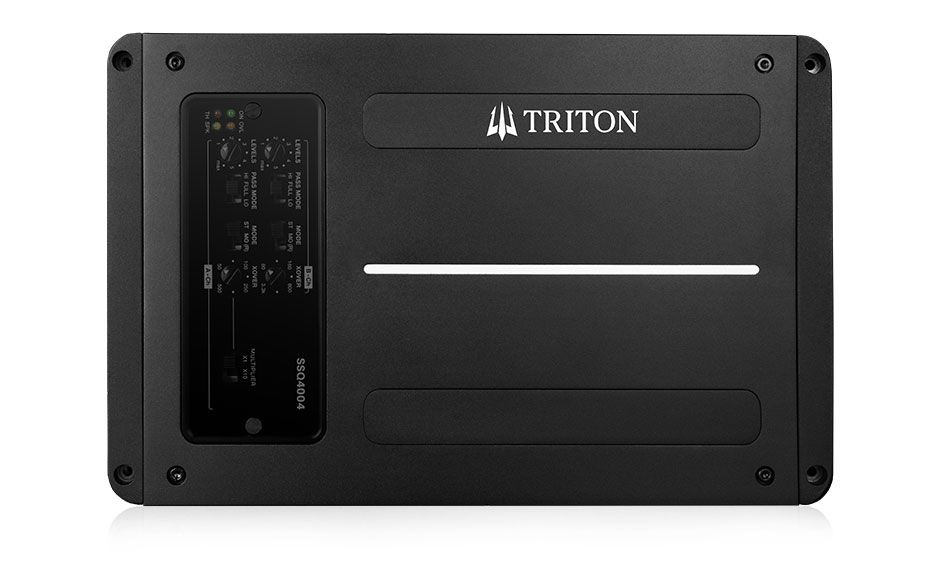

SSQ4004

Specifications

• Power RMS 2Ω @ 14.4V: 4 x 120W
• Power RMS 4Ω @ 14.4V: 4 x 80W
• Bridge Power 4Ω @ 14.4V: 4 x 80W
• THD+N @ Nominal Power: <1%
• Frequency Response: 10Hz ~ 50kHz
• SNR: <80dB(1W)
• Dimensions: 261*170*48mm



• Input Sensitivity: 0.2V to 4.5V
• Damping Factor: 60(4Ω)
• Operating Voltage: 14.4V
• High Pass Filter: 50Hz-500Hz(CH1,CH2), 80Hz-3.3KHz(CH3,CH4)
• Low Pass Filter: 50Hz-500Hz(CH1,CH2), 80Hz-3.3KHz(CH3,CH4)
• Total Efficiency: 80%
• Max Current Draw (A): 28
• Music Current Draw (A): 23
