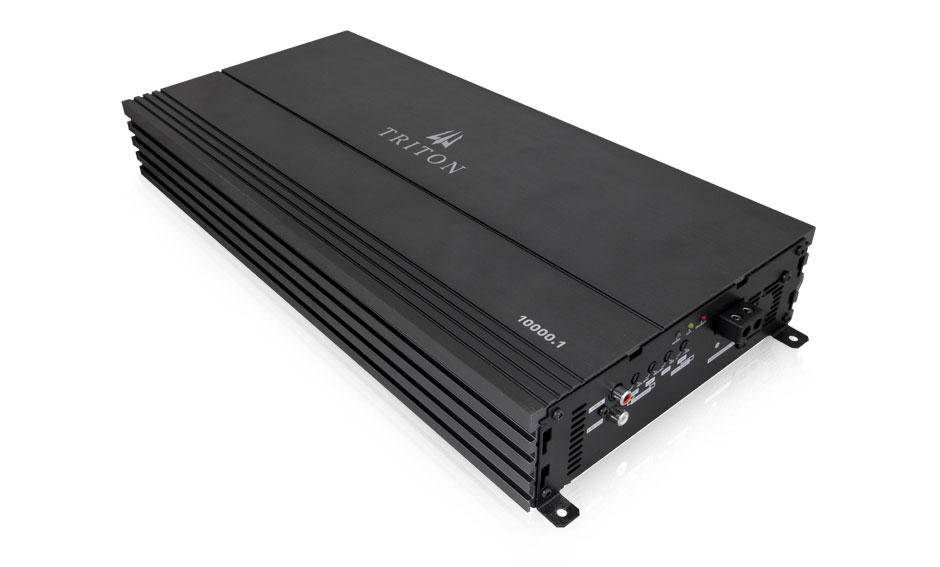

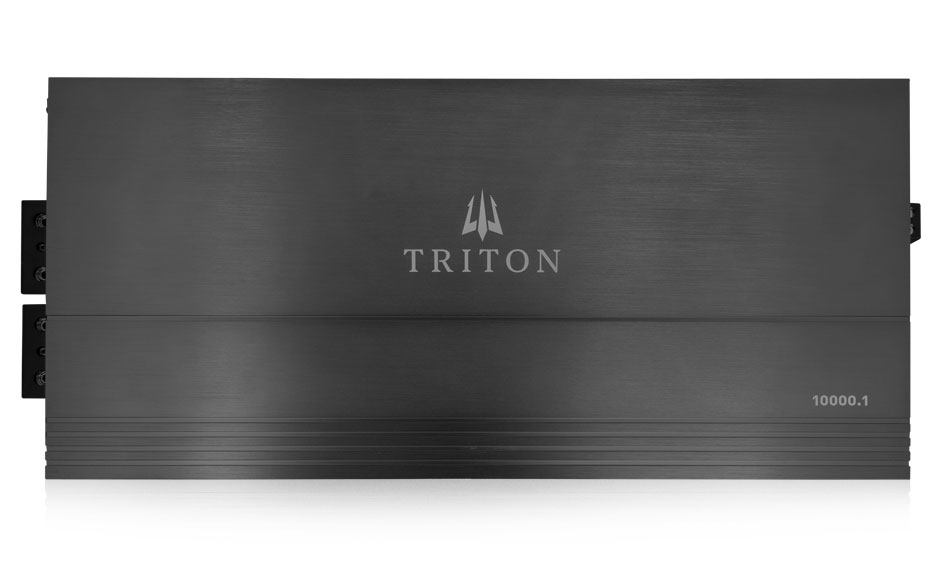

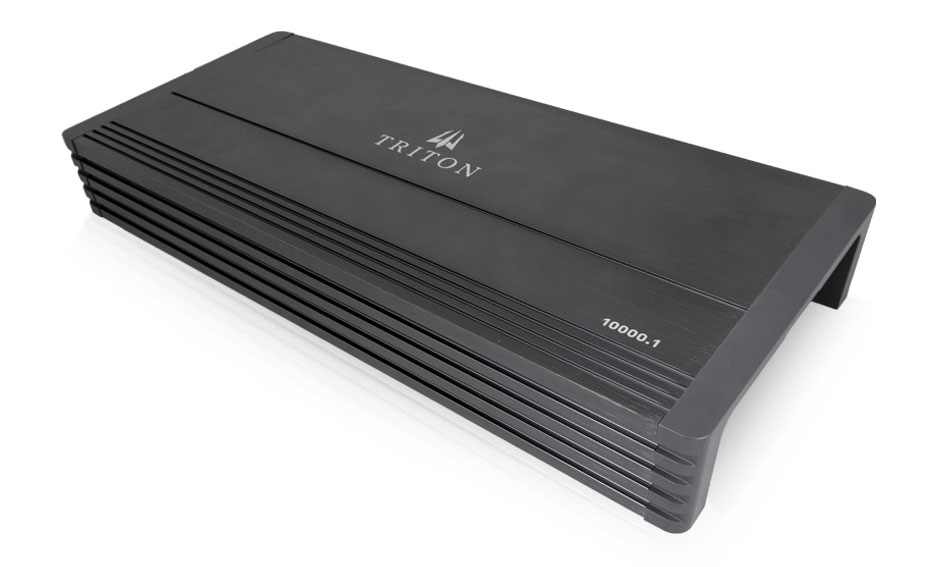

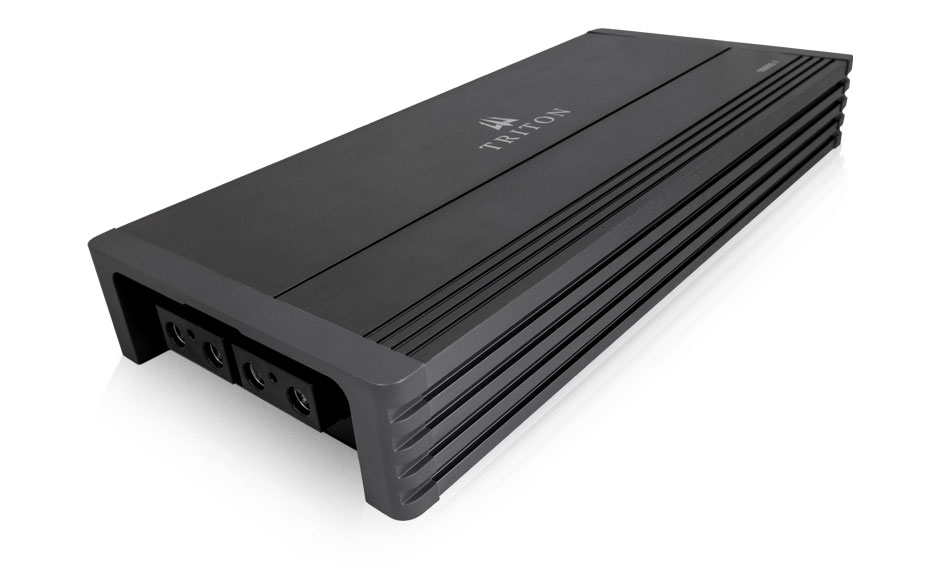

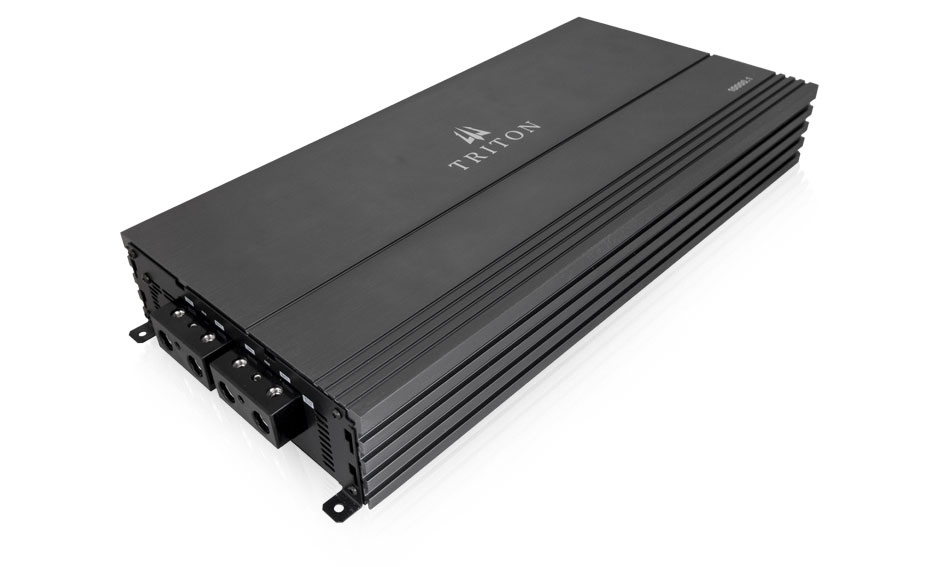

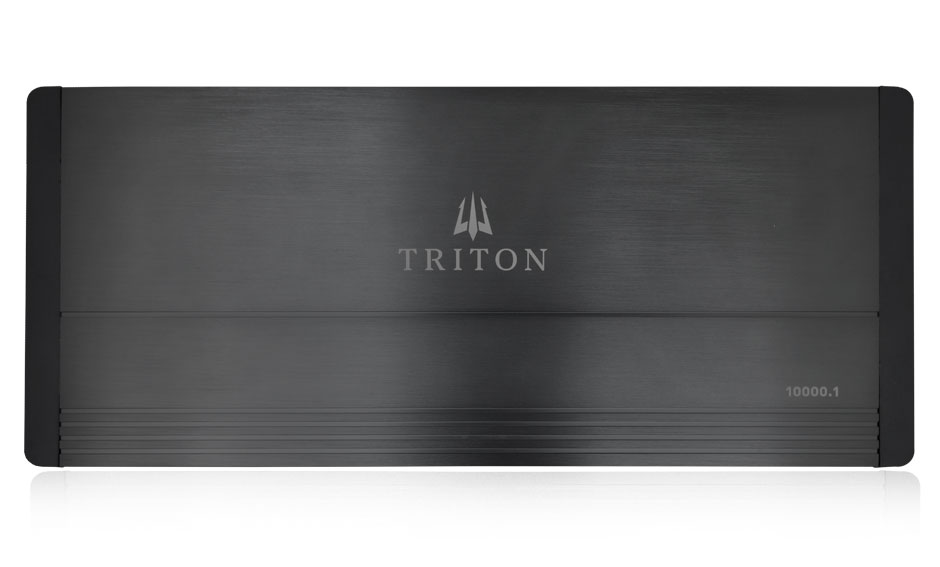

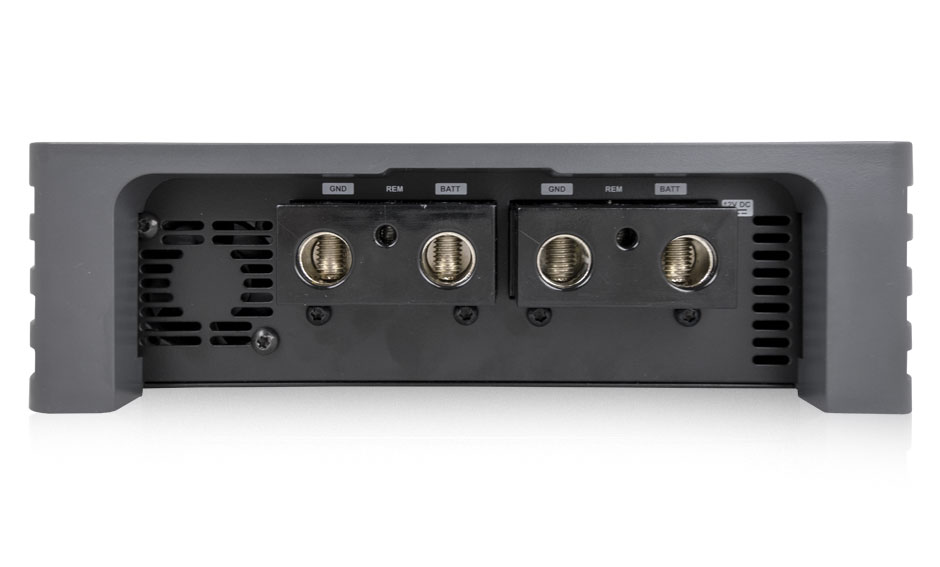

SX100001

Specifications

• Power RMS 1Ω @ 14.4V: 1 x 10000W
• Power RMS 2Ω @ 14.4V: 1 x 5500W
• Power RMS 4Ω @ 14.4V: 1 x 3025W
• THD+N @ Nominal Power: 0.1%
• Frequency Response: 5Hz ~ 6kHz
• SNR: 88dB
• Input Sensitivity: 0.5V to 8V
• Dimensions: 9"W x 20-1/2"L x 2-3/4"H



• Damping Factor: 200

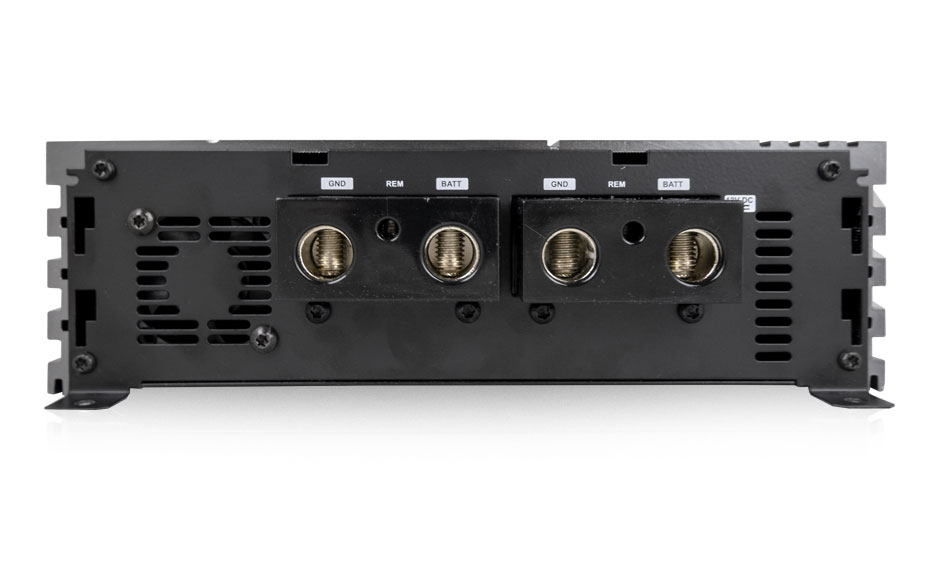

• Operating Voltage: 9V to 16V

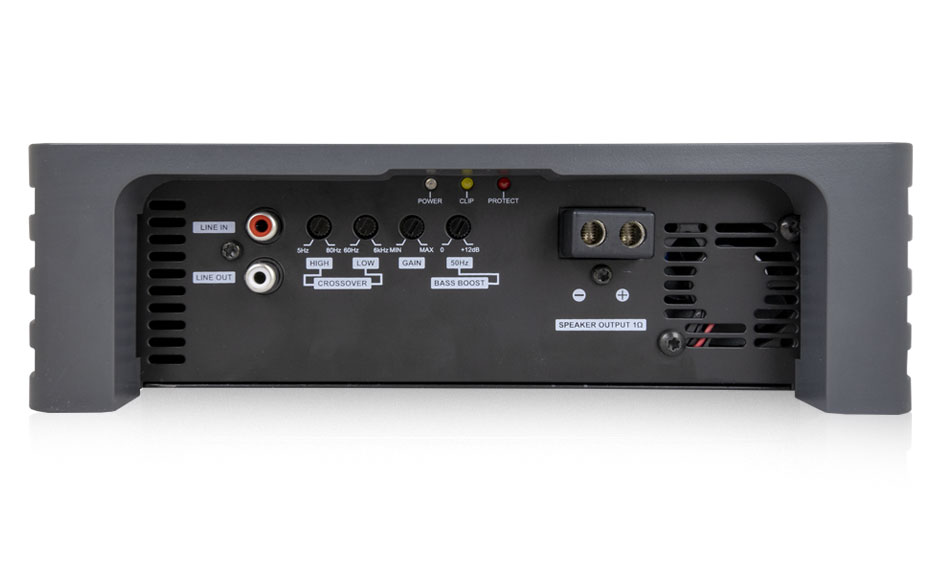

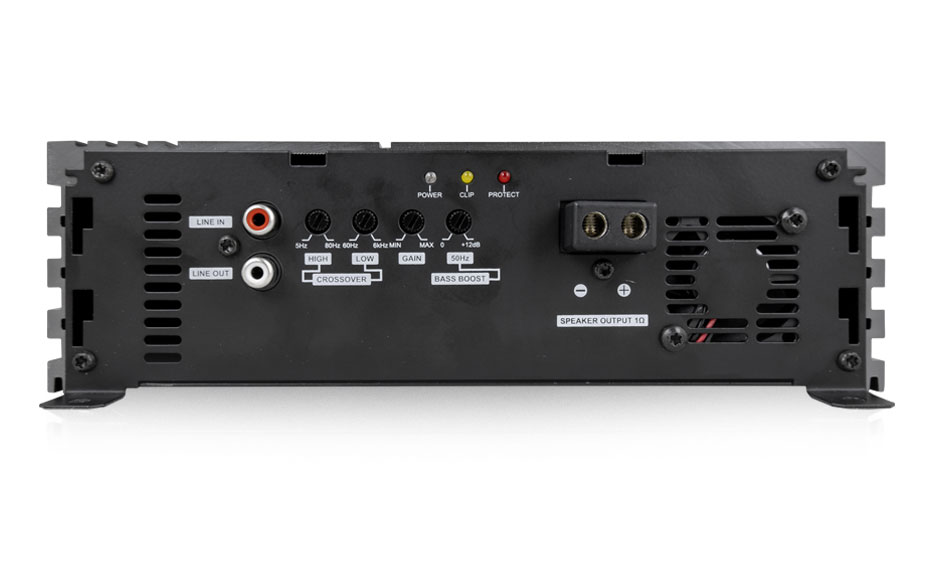

• High Pass Filter: 5Hz to 80Hz
• Low Pass Filter: 60Hz to 6000Hz
• Total Efficiency: 75%
• Max Current Draw (A): 1058
• Music Current Draw (A): 529
