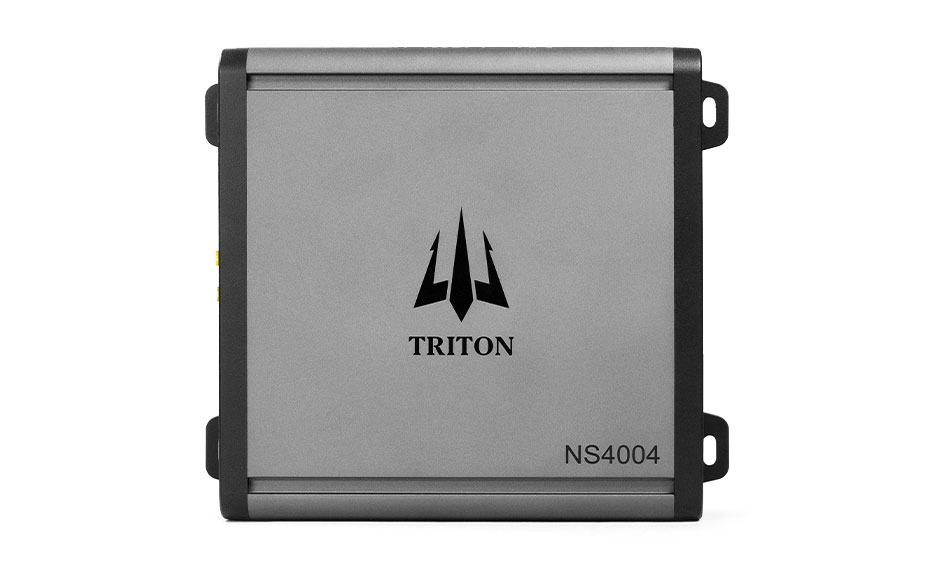

NS4004

Specifications

• Power RMS 2Ω @ 14.4V: 4 x 100W
• Power RMS 4Ω @ 14.4V: 4 x 50W
• Bridge Power 4Ω @ 14.4V: 2 x 200W
• THD+N @ Nominal Power: <1%
• Frequency Response (-3db): 12Hz ~ 20kHz
• SNR: >80dB



• Input Sensitivity: 200mV - 6V Low Level
  0.8V-24V High Level
• High Pass Filter: 50Hz-250Hz
• Low Pass Filter: 50Hz-250Hz
• Dimensions: 7.26” x 6.22” x 2.03”
• Recommended Amp Kit: 8GKIT
